Product ranges

Electric actuators for industrial valves, control technology and custom applications

Our product ranges quickly lead to the right actuator: rotary and part-turn actuators, linear actuators, ATEX/IECEx versions, accessories and customer-specific custom solutions.

Request actuator View product families

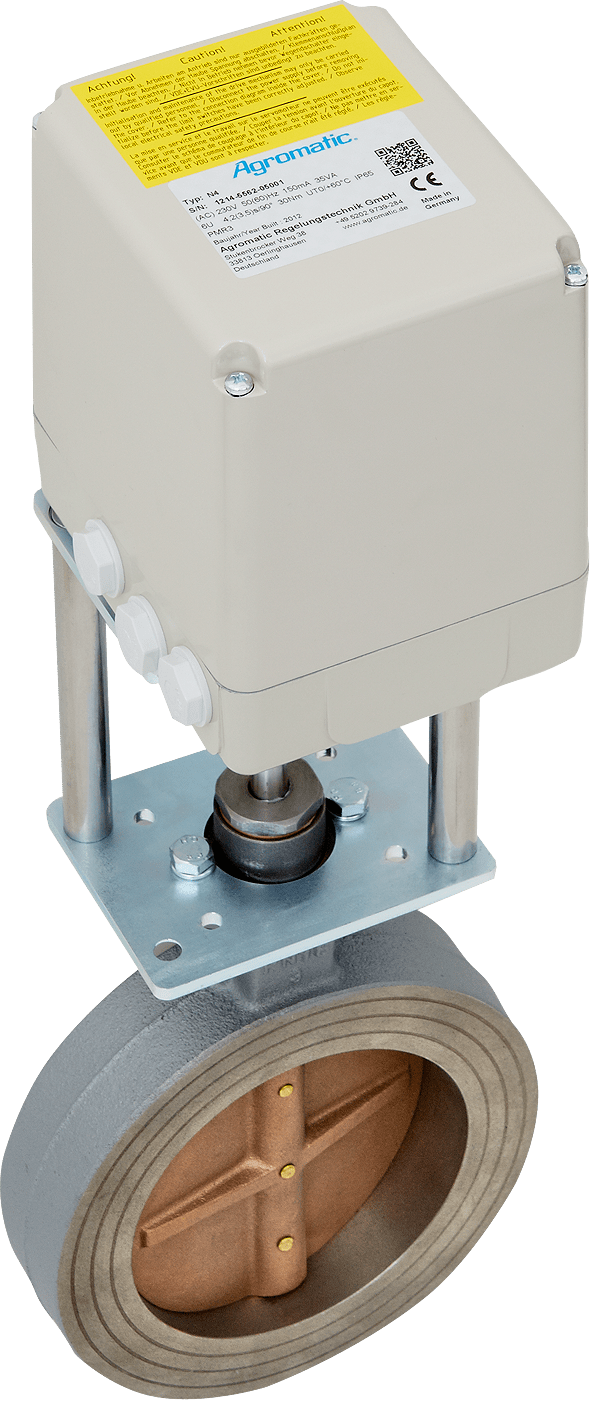

Agromatic rotary actuator as example image for the product page

Overview

Product families at a glance

Each category combines typical applications with key performance ranges and leads quickly to the right product family.

Example image of a rotary and part-turn actuator
Torque

Rotary and part-turn actuators

For valves, dampers, ball valves and industrial positioning elements with defined rotary or part-turn movement.

Torque
25 Nm to 500 Nm
90° operating time
approx. 1–220 s
Extended range
project-specific up to 32,000 Nm
Request actuator selection

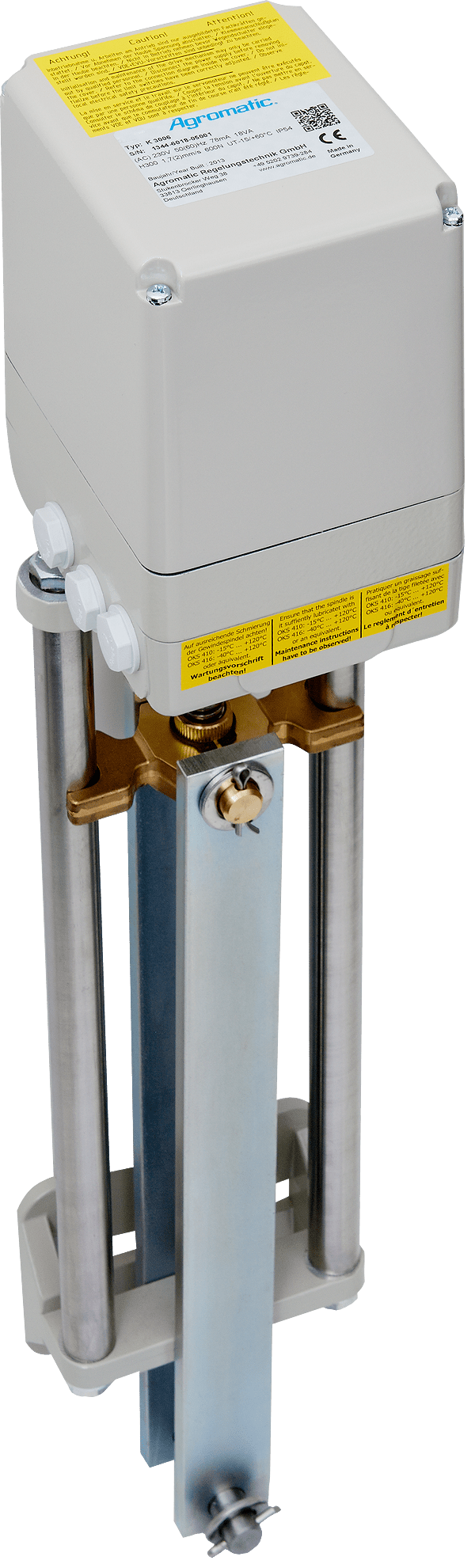

Example image of a linear actuator
Linear movement

Linear actuators

For slide gates, valves and linear positioning tasks in machines and plants — from compact designs to high forces.

Thrust force
600 N to 5,000 N
Extended ranges
up to 25 kN / up to 190 kN
Thrust speed
depending on design and stroke
Request actuator selection

Tool

Product configurator for variants and preliminary inquiries

The configurator starts with rotary and part-turn actuators from the N and NK series as well as ATEX versions Zone 2/22 and Zone 1. Linear actuators are already planned as a separate expansion stage.

Open configurator

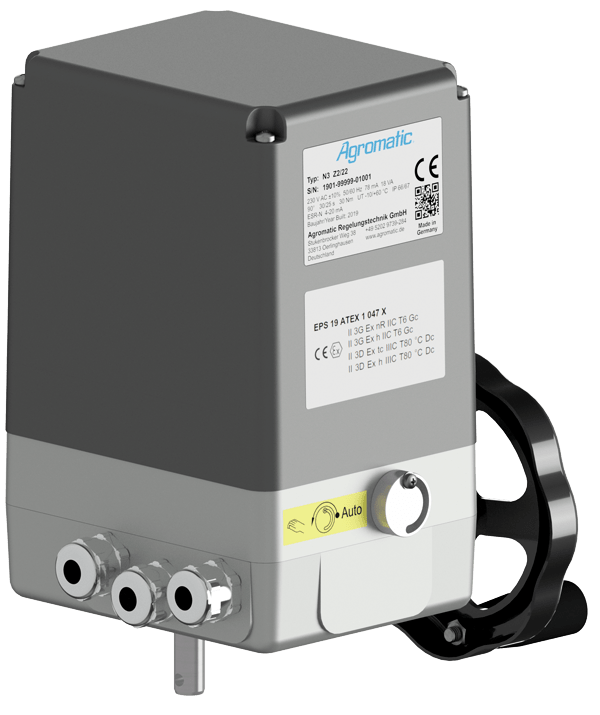

Example image of an ATEX Zone 2 / 22 actuator
Zone 2 / 22

ATEX actuators Zone 2 / 22

Explosion-protected rotary, part-turn and linear actuators for Zone 2 and Zone 22 in process applications.

Torque
up to 310 Nm, project-specific up to 500 Nm
Linear force
600–5,000 N
Version
Rotary, part-turn and linear actuators
Request actuator selection
Technical data

Performance ranges by product family

The values are intended for preselection. The actual design depends on application, duty cycle, operating time, voltage, environment and options.

Product familyTypes / sizesTorque / forceOperating time / note
Rotary and part-turn actuatorsnT 25, NK, NL, N1–N4 A, N5–N6, N8, NV25 Nm to 500 Nmapprox. 1–220 s / 90° depending on series
Rotary and part-turn actuators, high rangeproject-specific versionsup to 32,000 NmDesigned according to application and gearbox
Linear actuatorsK, KA, V600 N to 5,000 NSelected by stroke, force and thrust speed
ATEX Zone 2 / 22N1–N4 A Z2/22, N5–N6 Z2/22, K/KA/V Z2/22up to 310 Nm / 600–5,000 NDesigned according to stroke, speed and Ex requirements

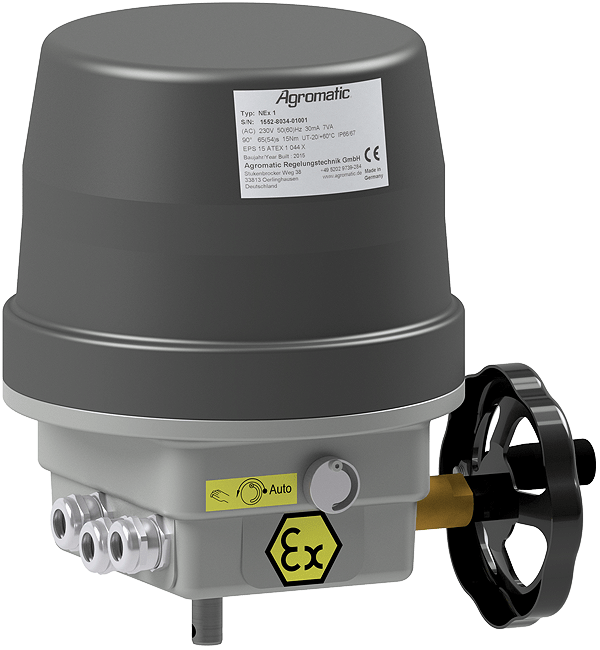

IECEx / ATEX Zone 1NEx, NEx-K, NEx-KA, NEx-Vup to 310 Nm / 600–5,000 NDesigned according to application and approval requirements
Selection guide

Which information helps us find the right actuator?

For reliable preselection, the most important details are movement type, performance and environmental conditions. For Ex applications, zone, approval and temperature range are also required.

  • Movement type: rotary, part-turn or linear movement
  • Torque, thrust force, stroke, angle or number of turns
  • Operating time, thrust speed or desired control characteristic
  • Voltage, control signal, feedback and duty cycle
  • Environment: temperature, humidity, vibration, mounting position
  • Explosion protection: zone, equipment group, temperature class and approval

Fast orientation

Clarify the movement first: rotary/part-turn, linear, Ex Zone 2/22 or Ex Zone 1. For high force or special mechanics, we recommend direct technical coordination.

Send technical inquiry
