Rotary and part-turn actuators

Electric rotary and part-turn actuators for industrial valves

Agromatic rotary and part-turn actuators cover compact positioning tasks as well as robust valve and industrial applications. The series are structured by torque, travel range, operating time and environment.

25–500 Nmtorque range 1–220 s / 90°depending on series IP65–IP66/67depending on version

Request actuator Compare series

Agromatic N8 rotary and part-turn actuator

Series

Rotary and part-turn actuators at a glance

The following overview helps with technical preselection. Final sizing depends on the valve, duty cycle, voltage, control signal and installation conditions.

compact

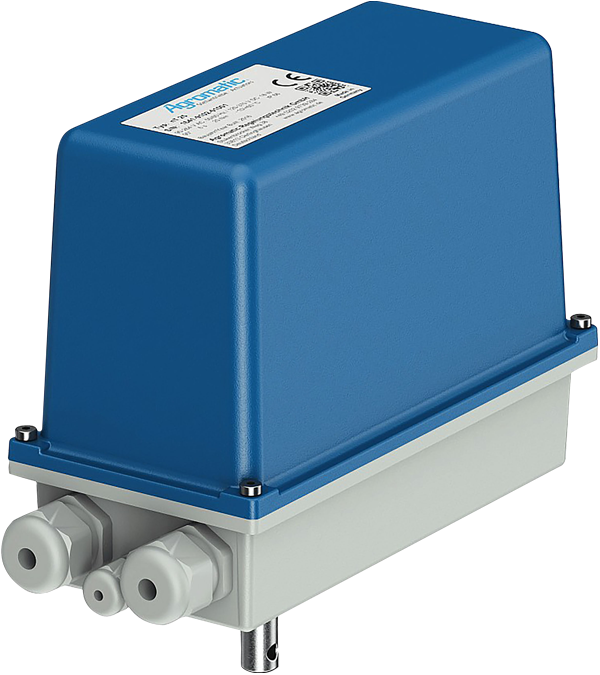

nT 25 part-turn actuator

Compact electric part-turn actuator for smaller valves and positioning tasks with BLDC motor.

Torque: 25 Nm, optionally 60 Nm
Travel range: 0°–300°
90° operating time: 6–60 s
Voltage: 90–264 V AC, 120–370 V DC, 24 V DC
Protection class: IP66
Temperature: 0 °C to +60 °C, with heater -15 °C to +60 °C

Datasheet PDF

fast

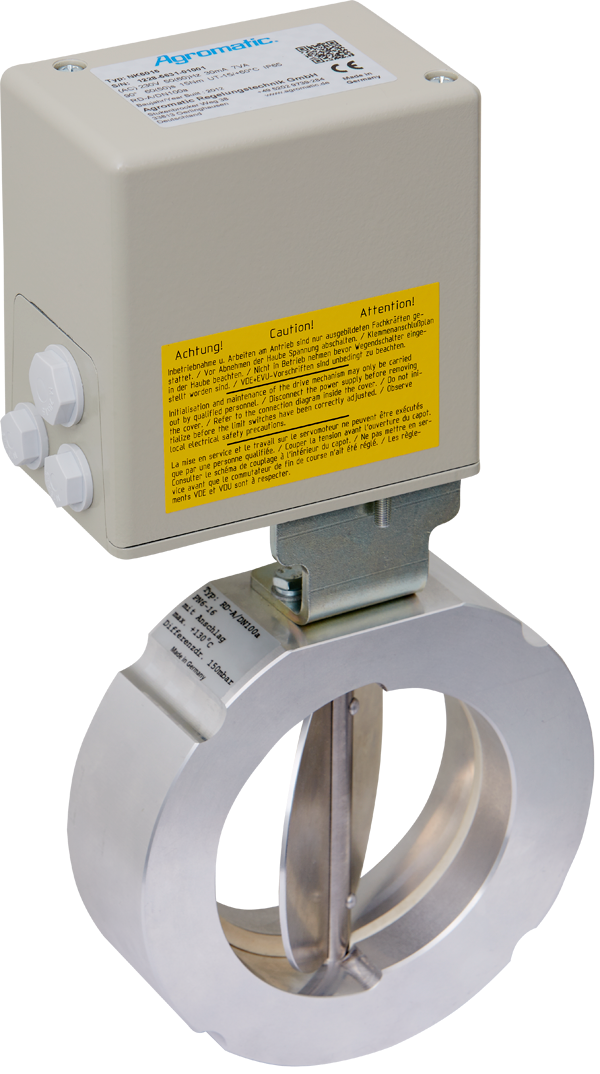

NK part-turn actuator

Compact part-turn actuator for fast positioning movements and lower torques.

Torque: ≤ 45 Nm
Travel range: 0°–300°
90° operating time: 1–60 s
Voltage: 230 V AC, 115 V AC, 24 V DC; special voltages on request
Protection class: IP65
Temperature: -15 °C to +60 °C, optional -40 °C to +80 °C

Datasheet PDF

N1 to N4 A rotary and part-turn actuator

standard range

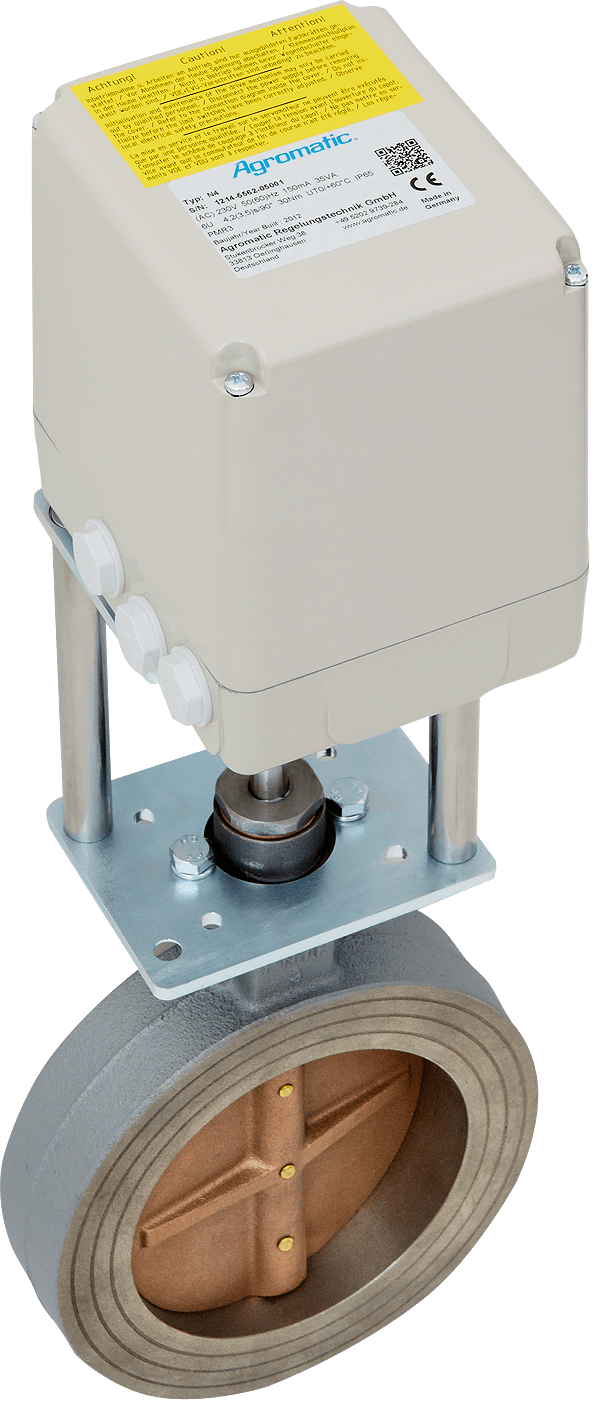

N1–N4 A rotary and part-turn actuator

Versatile standard series for rotary and part-turn movements with many voltage and travel variants.

Torque: ≤ 60 Nm
Travel range: 0°–330°, optionally up to 300 revolutions
90° operating time: 1–130 s
Voltage: 230 V AC, 115 V AC, 24 V AC, 400 V AC, 24 V DC
Protection class: IP65, optional IP66/67
Temperature: -15 °C to +60 °C, optional -40 °C to +80 °C

Datasheet N1–N4 Datasheet N4 A

higher torque

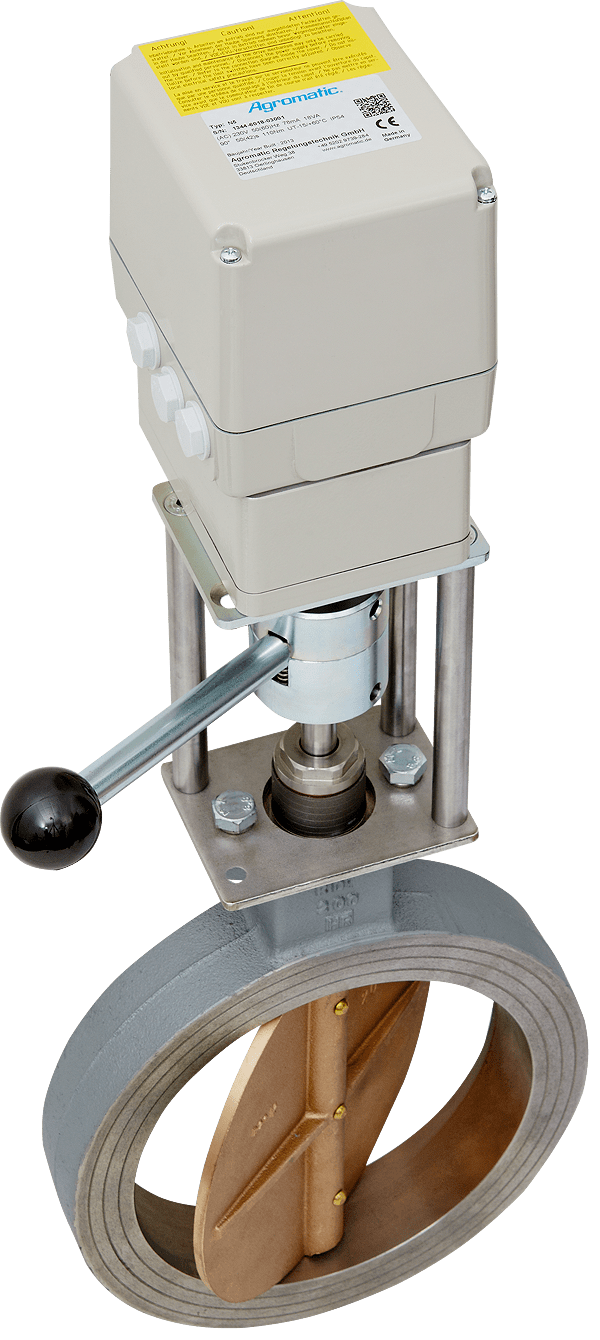

N5–N6 rotary and part-turn actuator

Robust rotary and part-turn actuators with additional gearbox for higher torques.

Torque: ≤ 180 Nm
Travel range: 3°–100°, optionally up to 100 revolutions
90° operating time: 10–150 s
Voltage: 230 V AC, 115 V AC, 24 V AC, 400 V AC, 24 V DC
Protection class: IP65, optional IP66/67
Temperature: -15 °C to +60 °C, optional -40 °C to +80 °C

Datasheet N5 Datasheet N6

large range

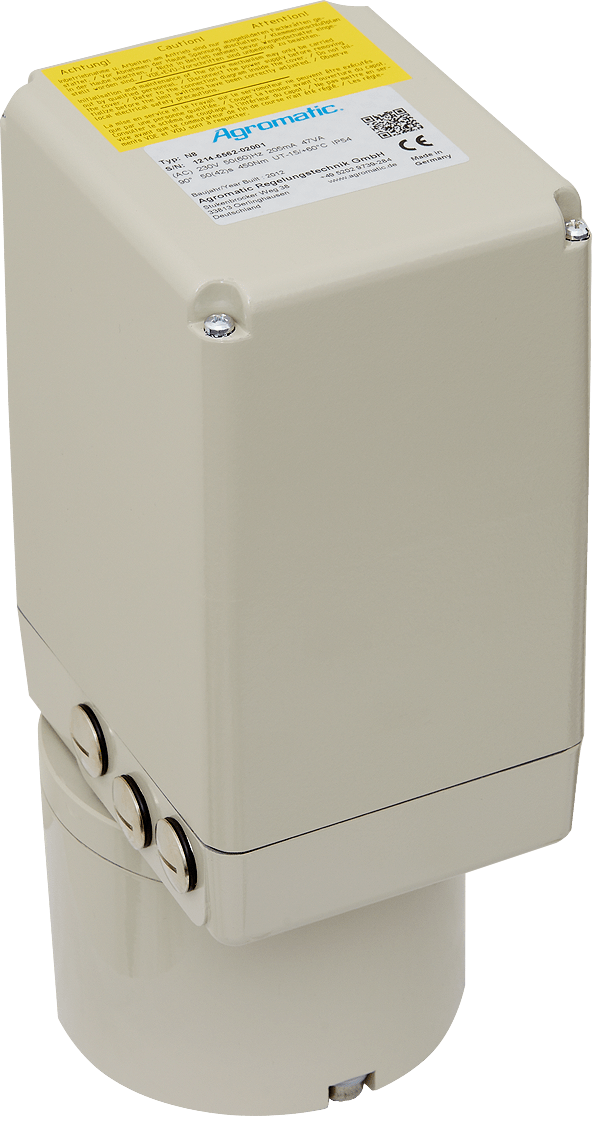

N8 rotary and part-turn actuator

Large torque class for demanding industrial part-turn and rotary applications.

Torque: ≤ 500 Nm
Travel range: 10°–95°, optionally up to 2.5 revolutions
90° operating time: 30–220 s
Voltage: 230 V AC, 115 V AC, 24 V AC, 400 V AC, 24 V DC
Protection class: IP65, optional IP66/67
Temperature: -15 °C to +60 °C, optional -40 °C to +80 °C

Datasheet PDF

multi-turn

NL rotary actuator

Multi-turn version for applications requiring a defined number of revolutions rather than a simple 90° movement.

Torque: application-specific
Travel range: multi-turn
Options: limit switches, feedback, control electronics and accessories

Comparison

Quickly compare actuator series

The table is intended for technical preselection and purchasing. For final sizing, we check the application, duty cycle, environment and mechanical interface.

Series	Torque	Travel range	90° operating time	Protection class	Temperature
nT 25	25 Nm, optional 60 Nm	0°–300°	6–60 s	IP66	0 °C to +60 °C, with heater -15 °C to +60 °C
NK	≤ 45 Nm	0°–300°	1–60 s	IP65	-15 °C to +60 °C, optional -40 °C to +80 °C
N1–N4 A	≤ 60 Nm	0°–330°, optionally up to 300 revolutions	1–130 s	IP65, optional IP66/67	-15 °C to +60 °C, optional -40 °C to +80 °C
N5–N6	≤ 180 Nm	3°–100°, optionally up to 100 revolutions	10–150 s	IP65, optional IP66/67	-15 °C to +60 °C, optional -40 °C to +80 °C
N8	180–500 Nm	10°–95°, optionally up to 2.5 revolutions	32–220 s	IP65, optional IP66/67	-15 °C to +60 °C, optional -40 °C to +80 °C

Selection

Need support selecting a rotary or part-turn actuator?

Tell us the torque, angle, operating time, voltage, control signal, ambient conditions and valve type. We will help with the technical preselection.
