Position controllers for Agromatic electric actuators

Electronic position controllers for Agromatic actuators – matched to series, supply voltage, setpoint, actual-value signal and installation situation.

Control

Positioning according to an external setpoint

Position controllers allow Agromatic actuators to be integrated into customer-side control and regulation concepts. Depending on the series, different controller versions are available, for example as an internal controller board or as an external solution in the control cabinet.

Back to accessories
ESR-N electronic position controller
Overview

Controller versions

Selection of electronic position controllers for different Agromatic series and control concepts.

ESR-N electronic position controller
Position controller

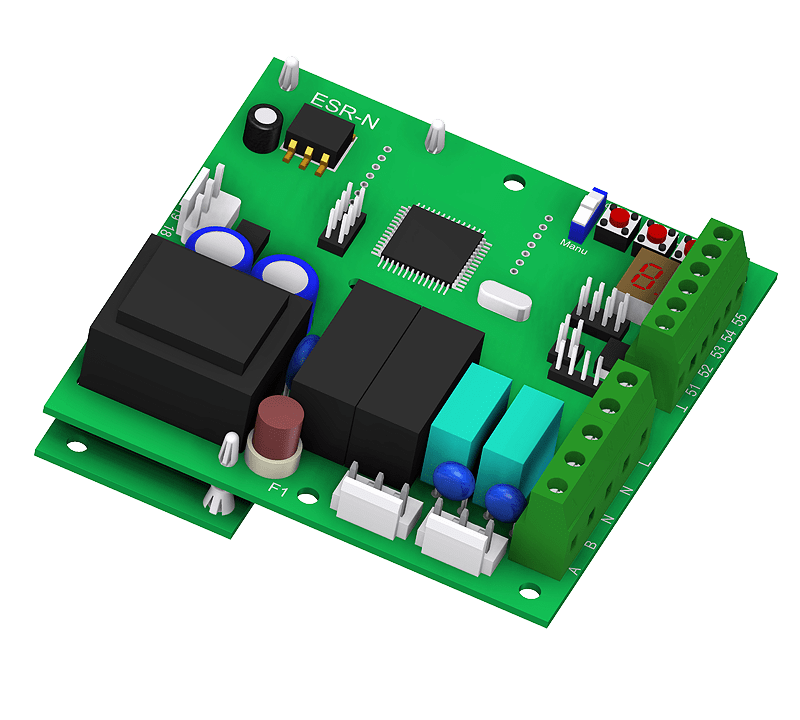

ESR-N – Electronic position controller

Industrial multilayer PCB, EMC-tested PCB layout, internal protection of the control electronics, relay output stage with RC protective circuit as well as 12-bit setpoint input and 12-bit actual-value output.

For actuators / use: Internal: N, NV, K, KA, V, NEx · external on DIN rail and enclosure in the control cabinet for all actuators

Data sheetRequest
ESR-NK electronic position controller
Position controller

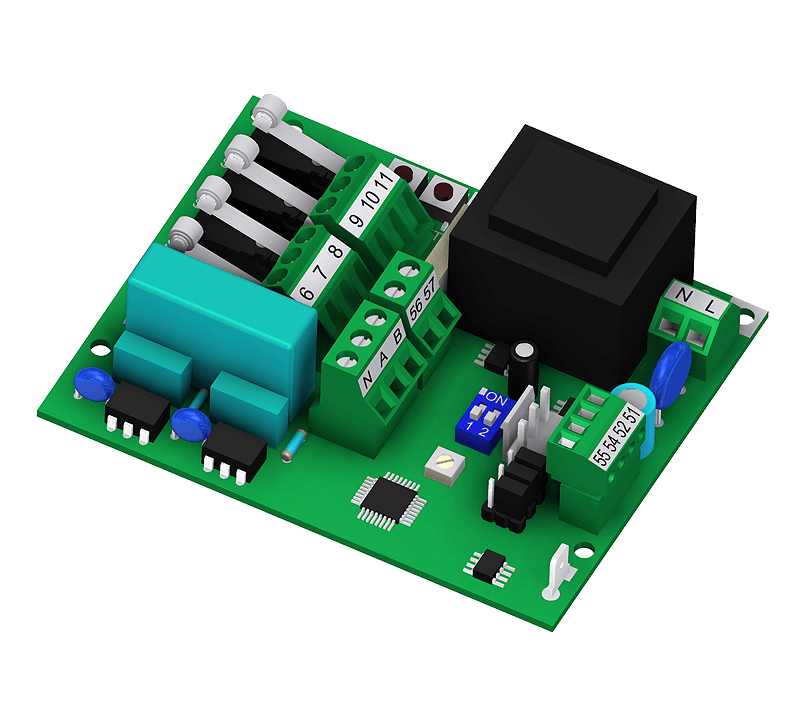

ESR-NK – Electronic position controller

Industrial multilayer PCB, EMC-tested PCB layout, short-circuit-proof transformer, triac output stage with RC protective circuit, integrated limit switches and 10-bit setpoint/actual-value signals.

For actuators / use: NK, VK

Data sheetRequest
ESR-NL electronic position controller
Position controller

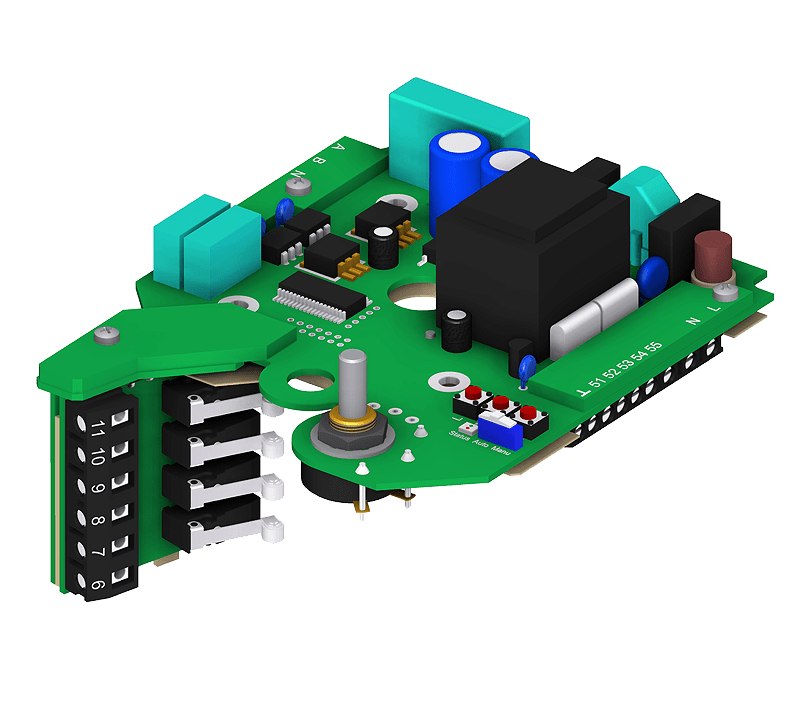

ESR-NL – Electronic position controller

Industrial multilayer PCB, EMC-tested PCB layout, internal protection, triac output stage with RC protective circuit, integrated limit switches and 10-bit setpoint input and actual-value output.

For actuators / use: NL

Data sheetRequest
ESR-HT electronic position controller
Position controller

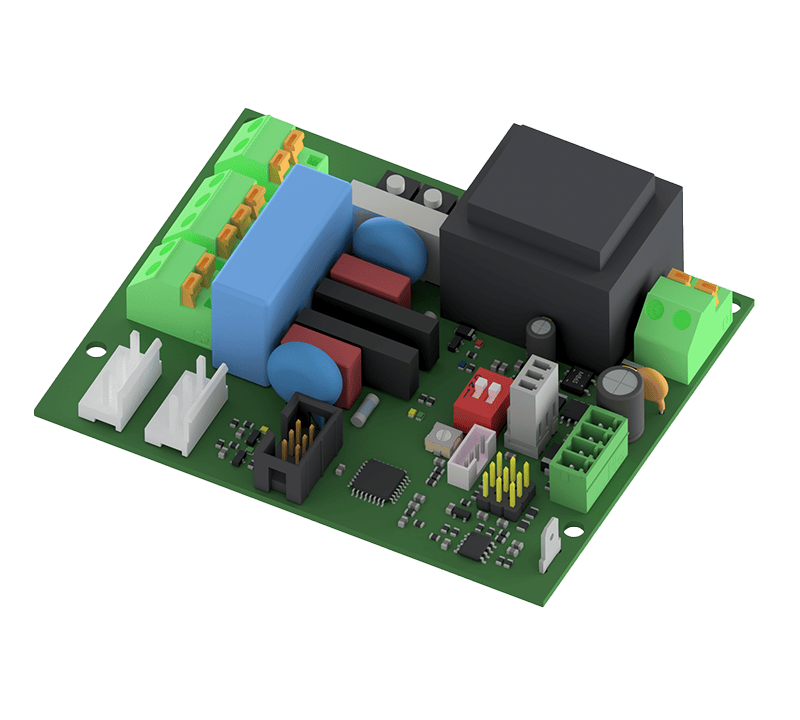

ESR-HT – Electronic position controller

AC position controller for 230, 115 or 24 V with solid-state relay output stage, limit-switch connections, fail-safe position, optional AC backup, blocking protection, adjustable overrun time and 10-bit setpoint/actual-value signals.

For actuators / use: NK and N

Data sheetRequest
ESR-DC electronic position controller
Position controller

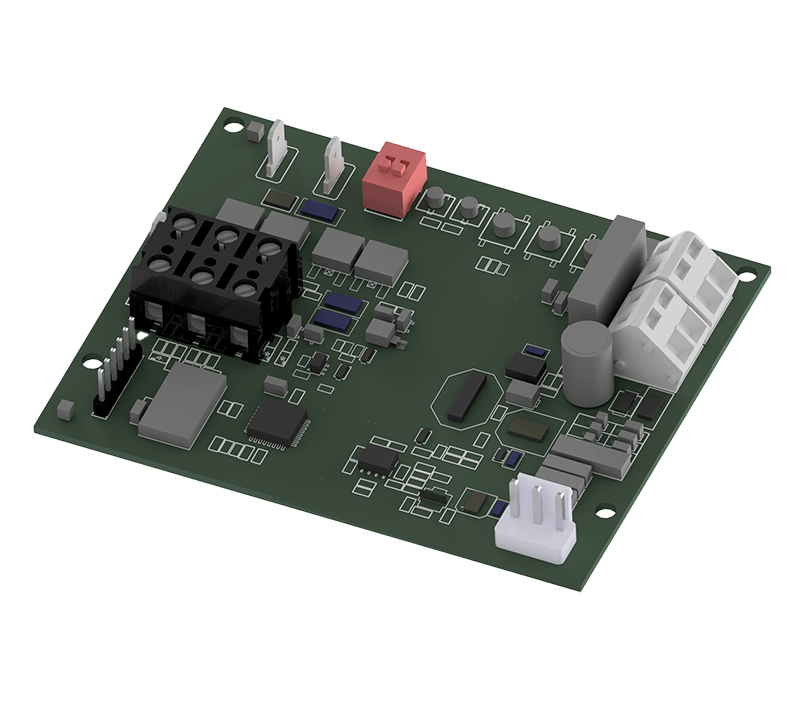

ESR-DC – Electronic position controller

24 V DC position controller with MOSFET bridge for currents up to 5 A, integrated limit switches, selectable fail-safe position, optional DC backup, adjustable blocking protection, hysteresis, maximum current and 10-bit setpoint/actual-value signals.

For actuators / use: NK and N
